Sketch Plugin: Sketch to VR

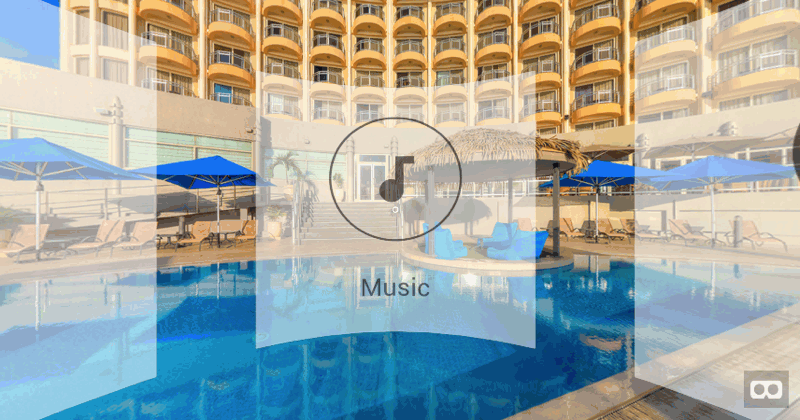

Turn your mocks into VR
Published in
2 min readJul 6, 2016

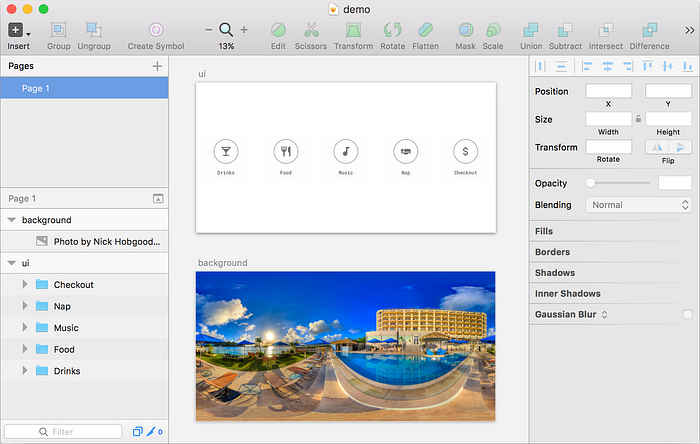

This plugin works on a Sketch file like this:

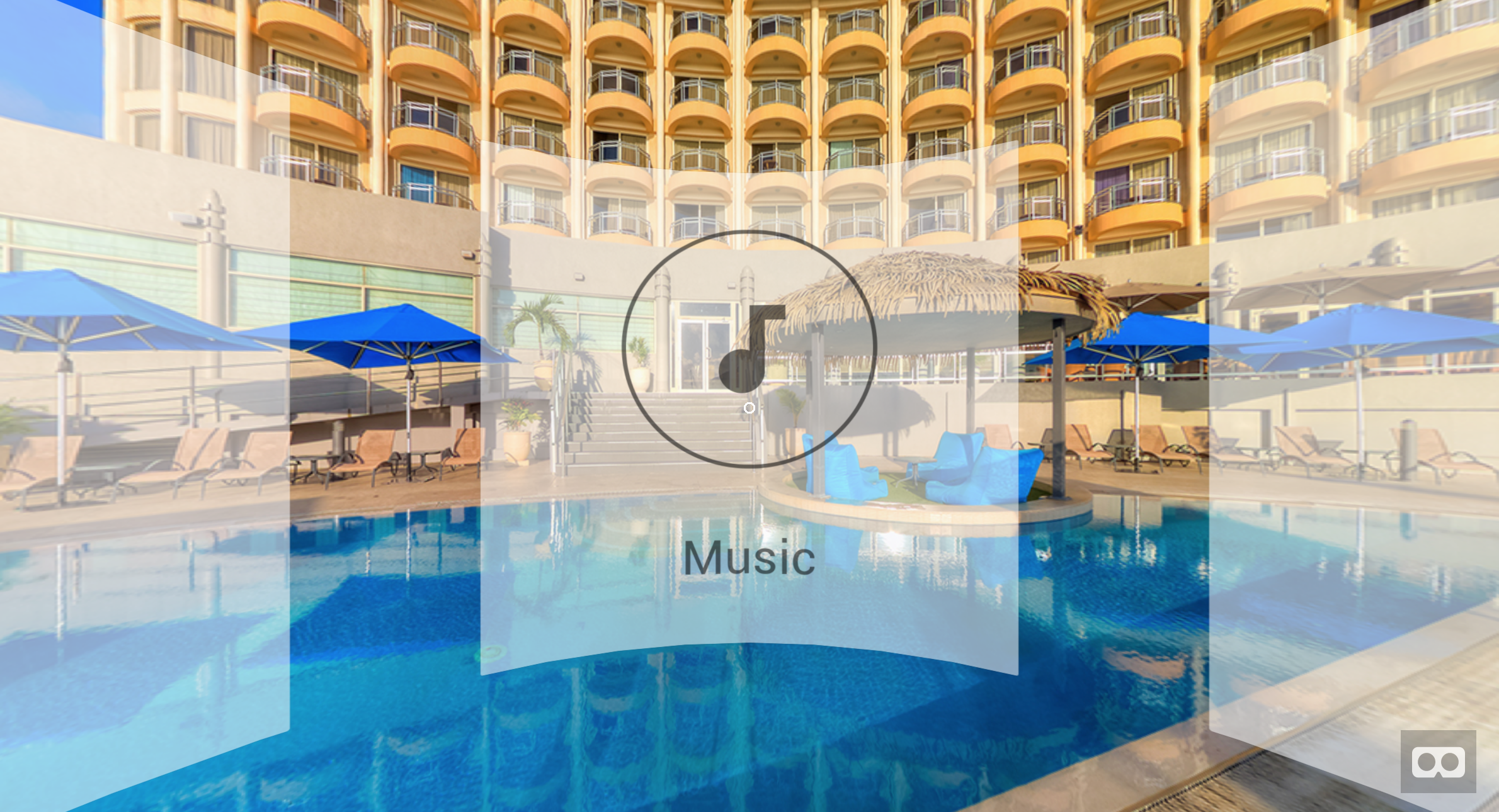

And turns it into VR like this:
Installation
- Download Zip and Extract it. There’s a demo sketch file and a SketchToVR.sketchplugin file.
- Double click on SketchToVR.sketchplugin. Sketch will install the plugin.
Export your mocks with the plugin
- Open the demo Sketch file. The “background” artboard is a 360° photo. The “ui” artboard is the interface on top of the photo. In order to be seamless, the 360° photo you use should be equirectangular. There are some examples on Flickr. The one in my file is from Nick Hobgood.
- Go to Plugins > Sketch to VR > Export. The export may be slow due to the size of the 360° photo.
View your mocks in VR
- The exported folder will be used to run A-Frame, an open-source Web VR library developed by MozVR. It needs a local server to work (simply opening the HTML page will not work). I recommend the SimpleHTTPServer by Scott Garner. Right click on the exported folder and choose SimpleHTTPServer. Use click & drag to navigate.
- To preview on your phone with a Cardboard, there are a few options. If you own a website, just upload this folder to your website and access the URL from your phone. Or you can use Chrome port forwarding to open localhost:8000 on your phone (initial page load may be slow due to the size of the 360° photo). Tap on the bottom right Cardboard icon to switch to VR mode!
Video instructions (35s)
Troubleshooting
- If you use your own sketch files, make sure to name your artboards “background” and “ui”.
- If you create your own photo / UI, you may need to go into the index.html file to adjust the dimension of the images. Read more about A-Frame.
- If you get a system prompt dialog while using SimpleHTTPServer, choose Allow.
- If you get some console errors and can’t see anything on the web page, restart the browser.
https://github.com/auxdesigner/Sketch-to-VR
Have fun making!
